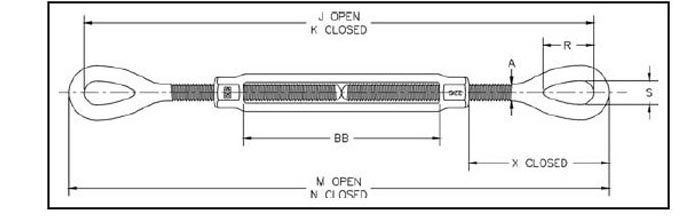

【 HG-226】Crosby 花籃螺栓環眼+環眼型
|
螺紋直徑和收縮距（in.） |
HG-226貨號 |
工作載荷（lbs） |
單重（lbs） |
各部分尺寸（in.） |
|
A |
J敞開端 |
K封閉端 |
M敞開端 |
N封閉端 |
R |
S |
X封閉端 |
BB |
|
† 1/4 x 4 |
1031252 |
500 |
.29 |
.25 |
11.94 |
7.94 |
12.38 |
8.38 |
.81 |
.34 |
1.76 |
4.07 |
|
† 5/16 x 4-1/2 |
1031270 |
800 |
.48 |
.31 |
13.92 |
9.42 |
14.48 |
9.98 |
.95 |
.44 |
2.20 |
4.58 |
|
† 3/8 x 6 |
1031298 |
1200 |
.75 |
.38 |
17.56 |
11.56 |
18.24 |
12.24 |
1.13 |
.53 |
2.48 |
6.10 |
|
1/2 x 6 |
1031314 |
2200 |
1.72 |
.50 |
19.94 |
13.94 |
20.82 |
14.82 |
1.41 |
.71 |
3.56 |
6.03 |
|
1/2 x 12 |
1031350 |
2200 |
2.63 |
.50 |
32.23 |
20.23 |
33.11 |
21.11 |
1.41 |
.71 |
3.54 |
12.36 |
|
5/8 x 6 |
1031378 |
3500 |
2.75 |
.63 |
21.72 |
15.72 |
22.72 |
16.72 |
1.80 |
.88 |
4.35 |
6.03 |
|
5/8 x 12 |
1031412 |
3500 |
4.12 |
.63 |
34.06 |
22.06 |
35.06 |
23.06 |
1.80 |
.88 |
4.34 |
12.39 |
|
3/4 x 6 |
1031430 |
5200 |
4.22 |
.75 |
23.24 |
17.24 |
24.50 |
18.50 |
2.09 |
1.00 |
5.12 |
6.13 |
|
3/4 x 12 |
1031476 |
5200 |
6.12 |
.75 |
35.64 |
23.64 |
36.90 |
24.90 |
2.09 |
1.00 |
5.09 |
12.59 |
|
3/4 x 18 |
1031494 |
5200 |
7.83 |
.75 |
47.64 |
29.64 |
48.90 |
30.90 |
2.09 |
1.00 |
5.12 |
18.53 |
|
7/8 x 12 |
1031519 |
7200 |
8.83 |
.88 |
36.70 |
24.70 |
38.20 |
26.20 |
2.38 |
1.25 |
5.79 |
12.16 |
|
7/8 x 18 |
1031537 |
7200 |
11.5 |
.88 |
49.17 |
31.17 |
50.67 |
32.67 |
2.38 |
1.25 |
5.79 |
18.63 |
|
1 x 6 |
1031555 |
10000 |
9.62 |
1.00 |
26.24 |
20.24 |
28.00 |
22.00 |
3.00 |
1.43 |
6.50 |
6.18 |
|
1 x 12 |
1031573 |
10000 |
13.0 |
1.00 |
38.24 |
26.24 |
40.00 |
28.00 |
3.00 |
1.43 |
6.50 |
12.18 |
|
1 x 18 |
1031591 |
10000 |
16.3 |
1.00 |
50.24 |
32.24 |
52.00 |
34.00 |
3.00 |
1.43 |
6.50 |
18.18 |
|
1 x 24 |
1031617 |
10000 |
20.2 |
1.00 |
62.84 |
38.84 |
64.60 |
40.60 |
3.00 |
1.43 |
6.47 |
24.84 |
|
1-1/4 x 12 |
1031635 |
15200 |
19.9 |
1.25 |
42.14 |
30.14 |
44.38 |
32.38 |
3.59 |
1.82 |
8.49 |
12.06 |
|
1-1/4 x 18 |
1031653 |
15200 |
23.8 |
1.25 |
54.14 |
36.14 |
56.38 |
38.38 |
3.59 |
1.82 |
8.49 |
18.06 |
|
1-1/4 x 24 |
1031671 |
15200 |
27.8 |
1.25 |
66.70 |
42.70 |
68.94 |
44.94 |
3.59 |
1.82 |
8.49 |
24.62 |
|
1-1/2 x 12 |
1031699 |
21400 |
28.7 |
1.50 |
44.24 |
32.24 |
46.74 |
34.74 |
4.09 |
2.12 |
9.46 |
12.32 |
|
1-1/2 x 18 |
1031715 |
21400 |
34.1 |
1.50 |
56.24 |
38.24 |
58.74 |
40.74 |
4.09 |
2.12 |
9.46 |
18.32 |
|
1-1/2 x 24 |
1031733 |
21400 |
39.6 |
1.50 |
68.86 |
44.86 |
71.36 |
47.36 |
4.09 |
2.12 |
9.46 |
24.94 |
|
1-3/4 x 18 |
1031779 |
28000 |
50.7 |
1.75 |
57.38 |
39.38 |
60.38 |
42.38 |
4.65 |
2.38 |
9.97 |
18.37 |
|
1-3/4 x 24 |
1031797 |
28000 |
58.2 |
1.75 |
69.38 |
45.38 |
72.38 |
48.38 |
4.65 |
2.38 |
9.97 |
24.37 |
|
2 x 24 |
1031813 |
37000 |
83.5 |
2.00 |
75.68 |
51.68 |
79.18 |
55.18 |
5.81 |
2.69 |
13.03 |
24.48 |
|
2-1/2 x 24 |
1031831 |
60000 |
149 |
2.50 |
79.18 |
55.18 |
83.18 |
59.18 |
6.49 |
3.12 |
13.76 |
24.60 |
|
2-3/4 x 24 |
1031859 |
75000 |
174 |
2.75 |
81.34 |
57.34 |
85.84 |
61.84 |
7.00 |
3.25 |
15.09 |
24.65 |
＊試驗負荷是工作載荷的2.5倍，破斷負荷是工作載荷的5倍。
