【HG-227】Crosby 花籃螺栓卸扣+環眼型
|
螺紋直徑和收縮距（in.） |
HG-227貨號 |
工作載荷（lbs） |
單重（lbs） |

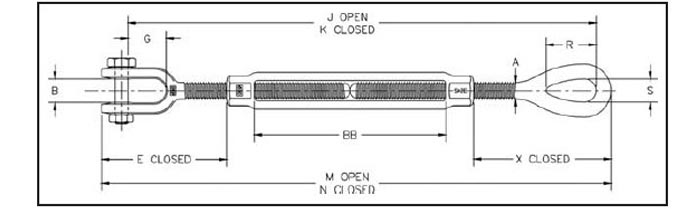

各部分尺寸（in.） |
|
A |
B |
E封閉端 |
G |
J敞開端 |
K封閉端 |
M敞開端 |
N封閉端 |
R |
S |
X封閉端 |
BB |
|
† 1/4 x 4 |
1031877 |
500 |
.33 |
.25 |
.45 |
1.66 |
.64 |
11.57 |
7.57 |
12.28 |
8.28 |
.81 |
.34 |
1.76 |
4.0 |
|
† 5/16 x 4-1/2 |
1031895 |
800 |
.52 |
.31 |
.50 |
2.02 |
.87 |
13.50 |
9.00 |
14.30 |
9.80 |
.95 |
.44 |
2.20 |
4.58 |
|
† 3/8 x 6 |
1031911 |
1200 |
.80 |
.38 |
.53 |
2.11 |
.85 |
16.91 |
10.91 |
17.87 |
11.87 |
1.13 |
.53 |
2.48 |
6.10 |
|
1/2 x 6 |
1031939 |
2200 |
1.77 |
.50 |
.64 |
3.22 |
1.07 |
19.30 |
13.30 |
20.48 |
14.48 |
1.41 |
.71 |
3.56 |
6.03 |
|
1/2 x 9 |
1031957 |
2200 |
2.25 |
.50 |
.64 |
3.20 |
1.07 |
25.59 |
16.59 |
26.77 |
17.77 |
1.41 |
.71 |
3.54 |
9.36 |
|
1/2 x 12 |
1031975 |
2200 |
2.67 |
.50 |
.64 |
3.20 |
1.07 |
31.59 |
19.59 |
32.77 |
20.77 |
1.41 |
.71 |
3.54 |
12.36 |
|
5/8 x 6 |
1031993 |
3500 |
2.98 |
.63 |
.79 |
3.90 |
1.32 |
20.73 |
14.73 |
22.27 |
16.27 |
1.80 |
.88 |
4.35 |
6.03 |
|
5/8 x 9 |
1032019 |
3500 |
3.72 |
.63 |
.79 |
3.89 |
1.32 |
27.07 |
18.07 |
28.61 |
19.61 |
1.80 |
.88 |
4.34 |
9.39 |
|
5/8 x 12 |
1032037 |
3500 |
4.35 |
.63 |
.79 |
3.89 |
1.32 |
33.07 |
21.07 |
34.61 |
22.61 |
1.80 |
.88 |
4.34 |
12.39 |
|
3/4 x 6 |
1032055 |
5200 |
4.51 |
.75 |
.97 |
4.71 |
1.52 |
22.17 |
16.17 |
24.09 |
18.09 |
2.09 |
1.00 |
5.12 |
6.13 |
|
3/4 x 9 |
1032073 |
5200 |
5.56 |
.75 |
.97 |
4.68 |
1.52 |
28.57 |
19.57 |
30.49 |
21.49 |
2.09 |
1.00 |
5.09 |
9.59 |
|
3/4 x 12 |
1032091 |
5200 |
6.42 |
.75 |
.97 |
4.68 |
1.52 |
34.57 |
22.57 |
36.49 |
24.49 |
2.09 |
1.00 |
5.09 |
12.59 |
|
/4 x 18 |
1032117 |
5200 |
8.14 |
.75 |
.97 |
4.71 |
1.52 |
46.57 |
28.57 |
48.49 |
30.49 |
2.09 |
1.00 |
5.12 |
18.53 |
|
7/8 x 12 |
1032135 |
7200 |
9.10 |
.88 |
1.16 |
5.50 |
1.77 |
35.68 |
23.68 |
37.91 |
25.91 |
2.38 |
1.25 |
5.79 |
12.16 |
|
7/8 x 18 |
1032153 |
7200 |
11.6 |
.88 |
1.16 |
5.50 |
1.77 |
48.15 |
30.15 |
50.38 |
32.38 |
2.38 |
1.25 |
5.79 |
18.63 |
|
1 x 6 |
1032171 |
10000 |
10.0 |
1.00 |
1.34 |
6.09 |
2.05 |
25.03 |
19.03 |
27.59 |
21.59 |
3.00 |
1.43 |
6.50 |
6.18 |
|
1 x 12 |
1032199 |
10000 |
13.4 |
1.00 |
1.34 |
6.09 |
2.05 |
37.03 |
25.03 |
39.59 |
27.59 |
3.00 |
1.43 |
6.50 |
12.18 |
|
1 x 18 |
1032215 |
10000 |
16.7 |
1.00 |
1.34 |
6.09 |
2.05 |
49.03 |
31.03 |
51.59 |
33.59 |
3.00 |
1.43 |
6.50 |
18.18 |
|
1 x 24 |
1032233 |
10000 |
20.6 |
1.00 |
1.34 |
6.06 |
2.05 |
61.63 |
37.63 |
64.19 |
40.19 |
3.00 |
1.43 |
6.47 |
24.84 |
|
1-1/4 x 12 |
1032251 |
15200 |
20.9 |
1.25 |
1.84 |
8.09 |
2.82 |
40.76 |
28.76 |
43.98 |
31.98 |
3.59 |
1.82 |
8.49 |
12.06 |
|
1-1/4 x 18 |
1032279 |
15200 |
24.8 |
1.25 |
1.84 |
8.09 |
2.82 |
52.76 |
34.76 |
55.98 |
37.98 |
3.59 |
1.82 |
8.49 |
18.06 |
|
1-1/4 x 24 |
1032297 |
15200 |
28.8 |
1.25 |
1.84 |
8.09 |
2.82 |
65.32 |
41.32 |
68.54 |
44.54 |
3.59 |
1.82 |
8.49 |
24.62 |
|
1-1/2 x 12 |
1032313 |
21400 |
30.6 |
1.50 |
2.06 |
8.93 |
2.81 |
42.50 |
30.50 |
46.21 |
34.21 |
4.09 |
2.12 |
9.46 |
12.32 |
|
1-1/2 x 18 |
1032331 |
21400 |
36.0 |
1.50 |
2.06 |
8.93 |
2.81 |
54.50 |
36.50 |
58.21 |
40.21 |
4.09 |
2.12 |
9.46 |
18.32 |
|
1-1/2 x 24 |
1032359 |
21400 |
41.5 |
1.50 |
2.06 |
8.93 |
2.81 |
67.12 |
43.12 |
70.83 |
46.83 |
4.09 |
2.12 |
9.46 |
24.94 |
|
1-3/4 x 18 |
1032395 |
28000 |
52.1 |
1.75 |
2.60 |
9.36 |
3.35 |
55.37 |
37.37 |
59.77 |
41.77 |
4.65 |
2.38 |
9.97 |
18.37 |
|
1-3/4 x 24 |
1032411 |
28000 |
59.7 |
1.75 |
2.60 |
9.36 |
3.35 |
67.37 |
43.37 |
71.77 |
47.77 |
4.65 |
2.38 |
9.97 |
24.37 |
|
2 x 24 |
1032439 |
37000 |
89.9 |
2.00 |
2.62 |
11.80 |
3.74 |
72.66 |
48.66 |
77.95 |
53.95 |
5.81 |
2.69 |
13.03 |
24.48 |
|
2-1/2 x 24 |
1032457 |
60000 |
158 |
2.50 |
3.06 |
13.26 |
4.44 |
76.08 |
52.08 |
82.68 |
58.68 |
6.49 |
3.12 |
13.76 |
24.60 |
|
2-3/4 x 24 |
1032475 |
75000 |
187 |
2.75 |
3.69 |
14.92 |
4.19 |
78.05 |
54.05 |
85.67 |
61.67 |
7.00 |
3.25 |
15.09 |
24.65 |
＊試驗負荷是工作載荷的2.5倍，破斷負荷是工作載荷的5倍。
