【 HG-228】Crosby 花籃螺栓卸扣+卸扣型
HG-228
|
螺紋直徑和收縮距（in.） |
HG-228
貨號 |
工作載荷（lbs.） |
單重（lbs） |

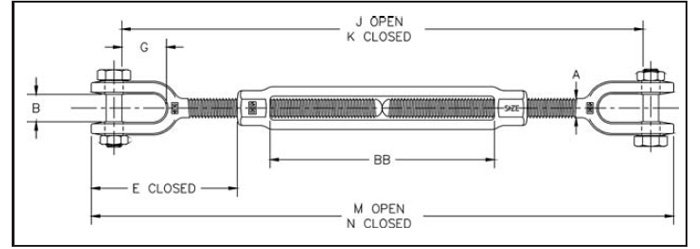

各部分尺寸（in.） |
|
A |
B |
E封閉端 |
G |
J敞開端 |
K封閉端 |
M敞開端 |
N封閉端 |
BB |
|
† 1/4 x 4 |
1032493 |
500 |
.37 |
.25 |
.45 |
1.66 |
.64 |
11.19 |
7.19 |
12.18 |
8.18 |
4.07 |
|
† 5/16 x 4-1/2 |
1032518 |
800 |
.56 |
.31 |
.50 |
2.02 |
.87 |
13.07 |
8.57 |
14.12 |
9.62 |
4.58 |
|
† 3/8 x 6 |
1032536 |
1200 |
.85 |
.38 |
.53 |
2.11 |
.85 |
16.25 |
10.25 |
17.50 |
11.50 |
6.10 |
|
1/2 x 6 |
1032554 |
2200 |
1.82 |
.50 |
.64 |
3.22 |
1.07 |
18.65 |
12.65 |
20.14 |
14.14 |
6.03 |
|
1/2 x 9 |
1032572 |
2200 |
2.29 |
.50 |
.64 |
3.20 |
1.07 |
24.94 |
15.94 |
26.43 |
17.43 |
9.36 |
|
1/2 x 12 |
1032590 |
2200 |
2.71 |
.50 |
.64 |
3.20 |
1.07 |
30.94 |
18.94 |
32.43 |
20.43 |
12.36 |
|
5/8 x 6 |
1032616 |
3500 |
3.21 |
.63 |
.79 |
3.90 |
1.32 |
19.74 |
13.74 |
21.82 |
15.82 |
6.03 |
|
5/8 x 9 |
1032634 |
3500 |
3.95 |
.63 |
.79 |
3.89 |
1.32 |
26.08 |
17.08 |
28.16 |
19.16 |
9.39 |
|
5/8 x 12 |
1032652 |
3500 |
4.58 |
.63 |
.79 |
3.89 |
1.32 |
32.08 |
20.08 |
34.16 |
22.16 |
12.39 |
|
3/4 x 6 |
1032670 |
5200 |
4.80 |
.75 |
.97 |
4.71 |
1.52 |
21.09 |
15.09 |
23.68 |
17.68 |
6.13 |
|
3/4 x 9 |
1032698 |
5200 |
5.85 |
.75 |
.97 |
4.68 |
1.52 |
27.49 |
18.49 |
30.08 |
21.08 |
9.59 |
|
3/4 x 12 |
1032714 |
5200 |
6.72 |
.75 |
.97 |
4.68 |
1.52 |
33.49 |
21.49 |
36.08 |
24.08 |
12.59 |
|
3/4 x 18 |
1032732 |
5200 |
8.45 |
.75 |
.97 |
4.71 |
1.52 |
45.49 |
27.49 |
48.08 |
30.08 |
18.53 |
|
7/8 x 12 |
1032750 |
7200 |
9.37 |
.88 |
1.16 |
5.50 |
1.77 |
34.65 |
22.65 |
37.62 |
25.62 |
12.16 |
|
7/8 x 18 |
1032778 |
7200 |
11.8 |
.88 |
1.16 |
5.50 |
1.77 |
47.12 |
29.12 |
50.09 |
32.09 |
18.63 |
|
1 x 6 |
1032796 |
10000 |
10.4 |
1.00 |
1.34 |
6.09 |
2.05 |
23.82 |
17.82 |
27.18 |
21.18 |
6.18 |
|
1 x 12 |
1032812 |
10000 |
13.8 |
1.00 |
1.34 |
6.09 |
2.05 |
35.82 |
23.82 |
39.18 |
27.18 |
12.18 |
|
1 x 18 |
1032830 |
10000 |
17.1 |
1.00 |
1.34 |
6.09 |
2.05 |
47.82 |
29.82 |
51.18 |
33.18 |
18.18 |
|
1 x 24 |
1032858 |
10000 |
21.0 |
1.00 |
1.34 |
6.06 |
2.05 |
60.42 |
36.42 |
63.78 |
39.78 |
24.84 |
|
1-1/4 x 12 |
1032876 |
15200 |
21.9 |
1.25 |
1.84 |
8.09 |
2.82 |
39.37 |
27.37 |
43.58 |
31.58 |
12.06 |
|
1-1/4 x 18 |
1032894 |
15200 |
25.9 |
1.25 |
1.84 |
8.09 |
2.82 |
51.37 |
33.37 |
55.58 |
37.58 |
18.06 |
|
1-1/4 x 24 |
1032910 |
15200 |
29.8 |
1.25 |
1.84 |
8.09 |
2.82 |
63.93 |
39.93 |
68.14 |
44.14 |
24.62 |
|
1-1/2 x 12 |
1032938 |
21400 |
32.6 |
1.50 |
2.06 |
8.93 |
2.81 |
40.76 |
28.76 |
45.68 |
33.68 |
12.32 |
|
1-1/2 x 18 |
1032956 |
21400 |
38.0 |
1.50 |
2.06 |
8.93 |
2.81 |
52.76 |
34.76 |
57.68 |
39.68 |
18.32 |
|
1-1/2 x 24 |
1032974 |
21400 |
43.5 |
1.50 |
2.06 |
8.93 |
2.81 |
65.38 |
41.38 |
70.30 |
46.30 |
24.94 |
|
1-3/4 x 18 |
1033018 |
28000 |
53.5 |
1.75 |
2.60 |
9.36 |
3.35 |
53.35 |
35.35 |
59.16 |
41.16 |
18.37 |
|
1-3/4 x 24 |
1033036 |
28000 |
61.1 |
1.75 |
2.60 |
9.36 |
3.35 |
65.35 |
41.35 |
71.16 |
47.16 |
24.37 |
|
2 x 24 |
1033054 |
37000 |
96.3 |
2.00 |
2.62 |
11.80 |
3.74 |
69.64 |
45.64 |
76.72 |
52.72 |
24.48 |
|
2-1/2 x 24 |
1033072 |
60000 |
167 |
2.50 |
3.06 |
13.26 |
4.44 |
72.97 |
48.97 |
82.18 |
58.18 |
24.60 |
|
2-3/4 x 24 |
1033090 |
75000 |
199 |
2.75 |
3.69 |
14.92 |
4.19 |
74.75 |
50.75 |
85.50 |
61.50 |
24.65 |
